Overcloq™ — world class timing systems and high speed video
select a device

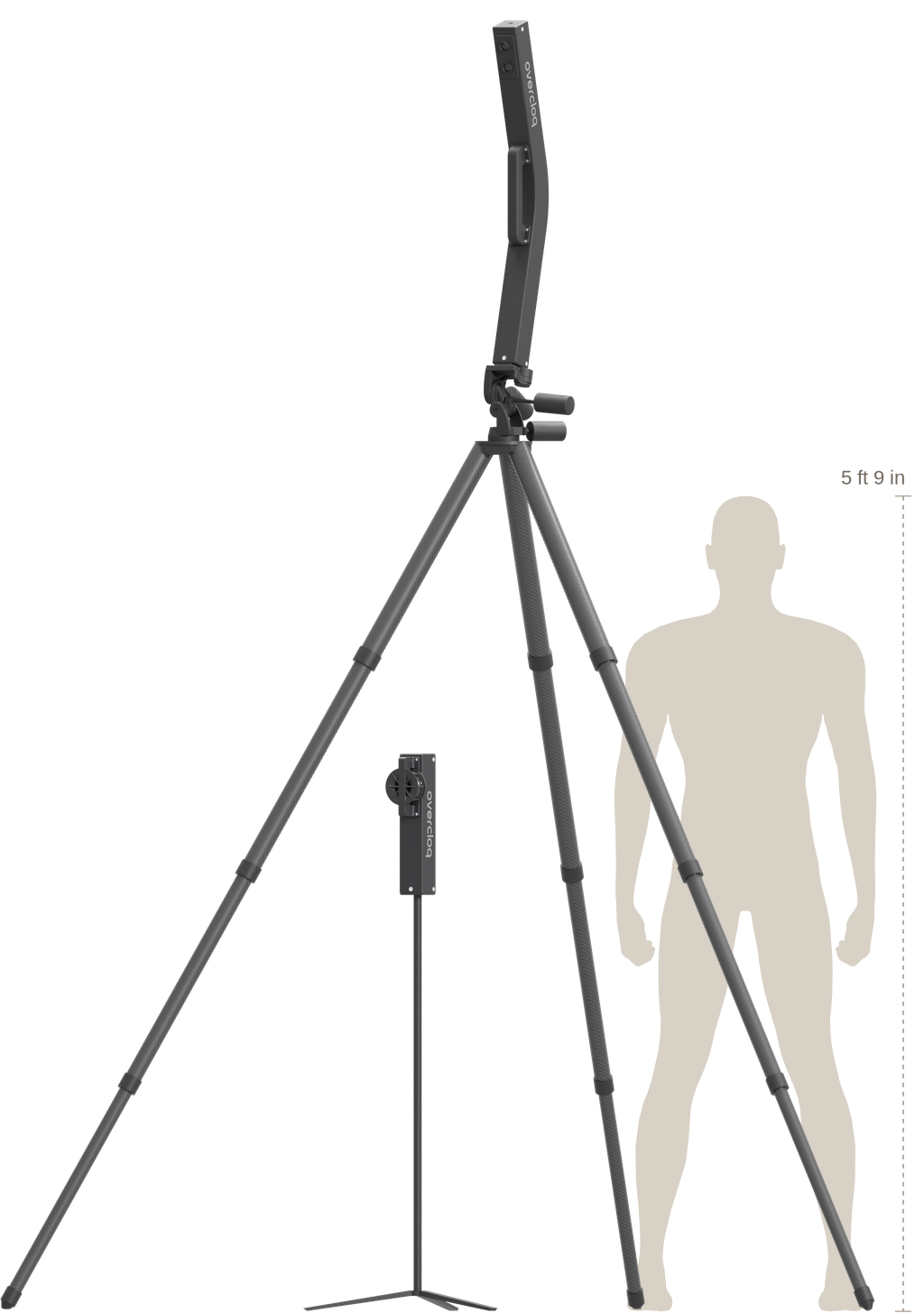

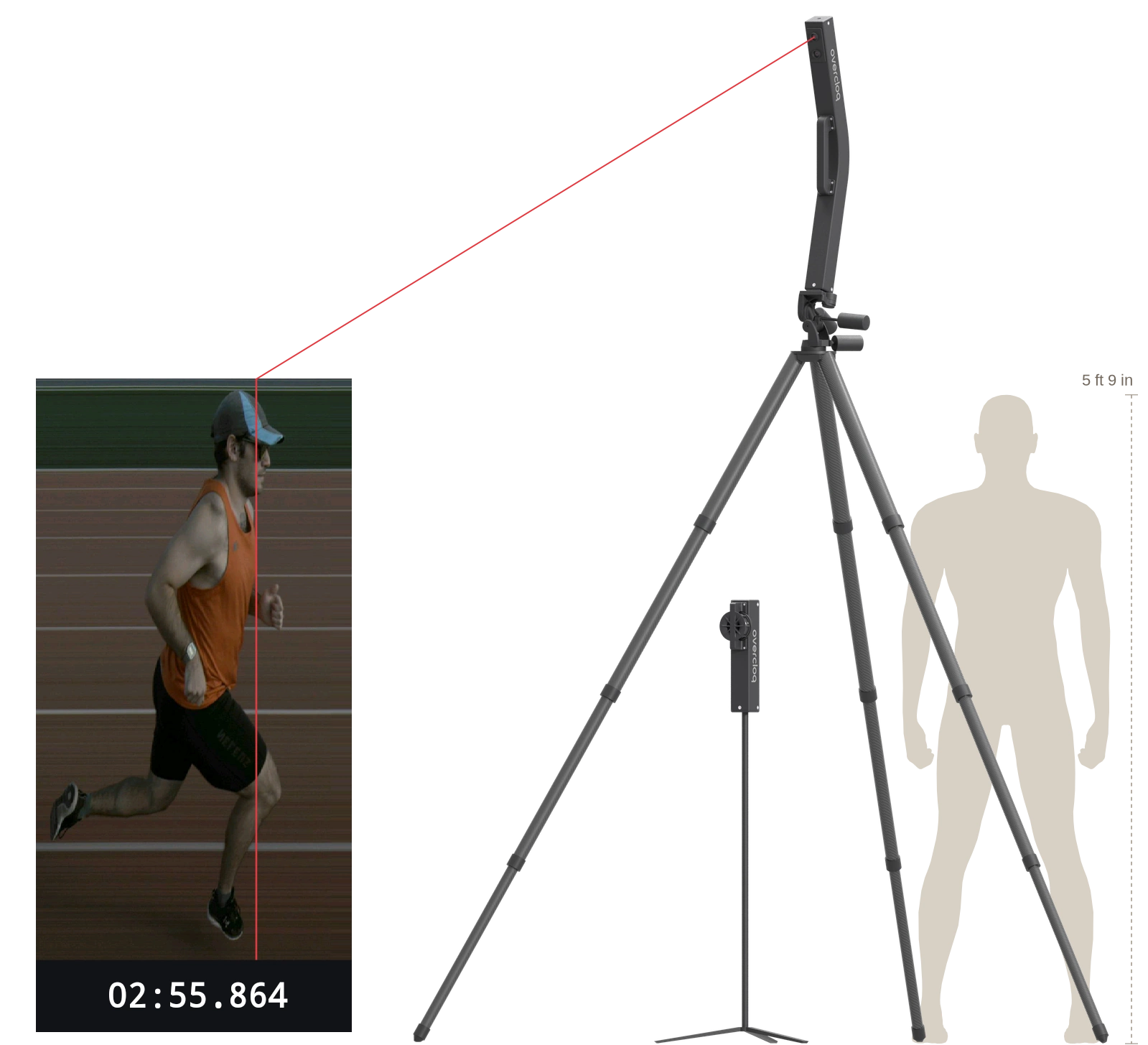

Tripod-mounted Overcloq PF2500 system with human silhouette for scale, and a line-scan finish image

PF2500

Photo finish timing
and HD imaging

Specs

  1. 2500fps HD line camera
  2. Ergonomic handle with
    embedded long range antenna
    for wireless operation
  3. Horn for automatic starts
  4. Shock sensor to detect
    any starter’s pistol

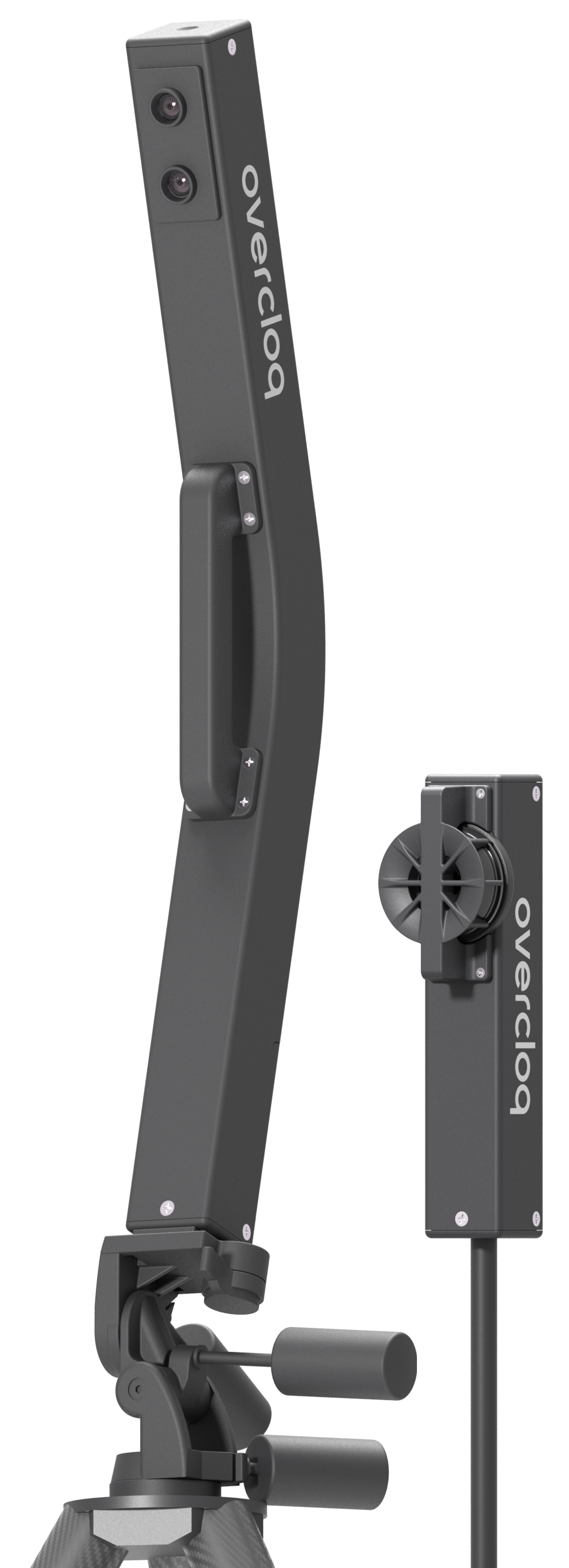

PF2500 camera head with its carry handle, and the PF2500 start unit with its horn

PF2500 / Photo finish / Competition

Pricing

High-resolution wireless photo-finish timing for competitive events, with synchronized units for split times.

$1,999per 3-month season
or
$4,999per year

PF2500 / Line-scan capture

Line-scan capture

PF2500 builds the finish image from 1,920-pixel lines captured at up to 2,500 lines per second.

Placeholder copy
PF2500 line-scan image of a runner crossing the finish line, with the timing cursor at 02:55.864

PF2500 / Split timing

Split timing

Synchronized PF2500 units record split times along the course, not only at the finish.

Placeholder copy

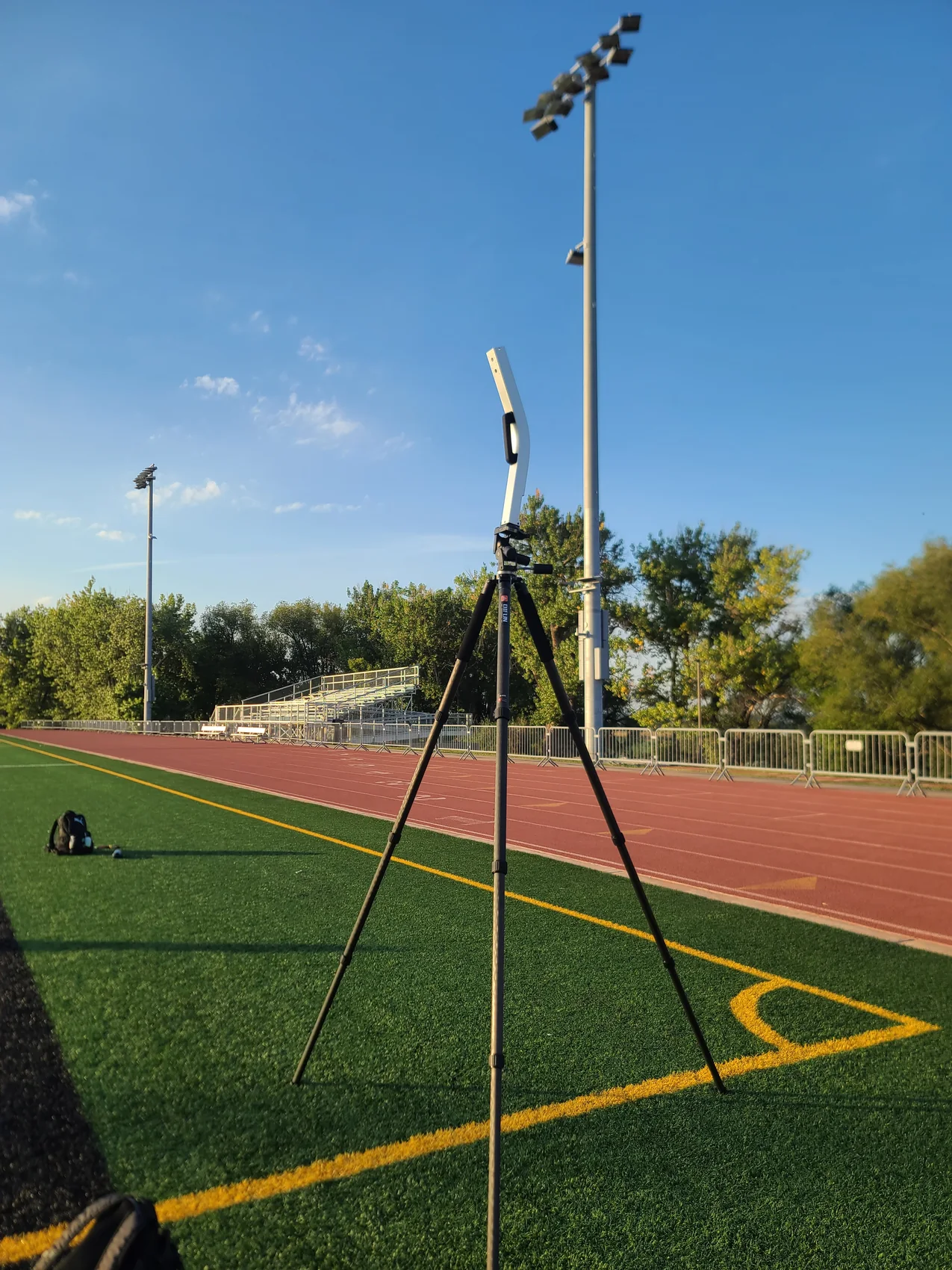

PF2500 mounted on a tripod beside a running track

PF2500 / Meet management

Meet management & results

Every PF2500 subscription includes access to the Overcloq meet-management and results website.

Placeholder copy
Results websiteScreenshot placeholder

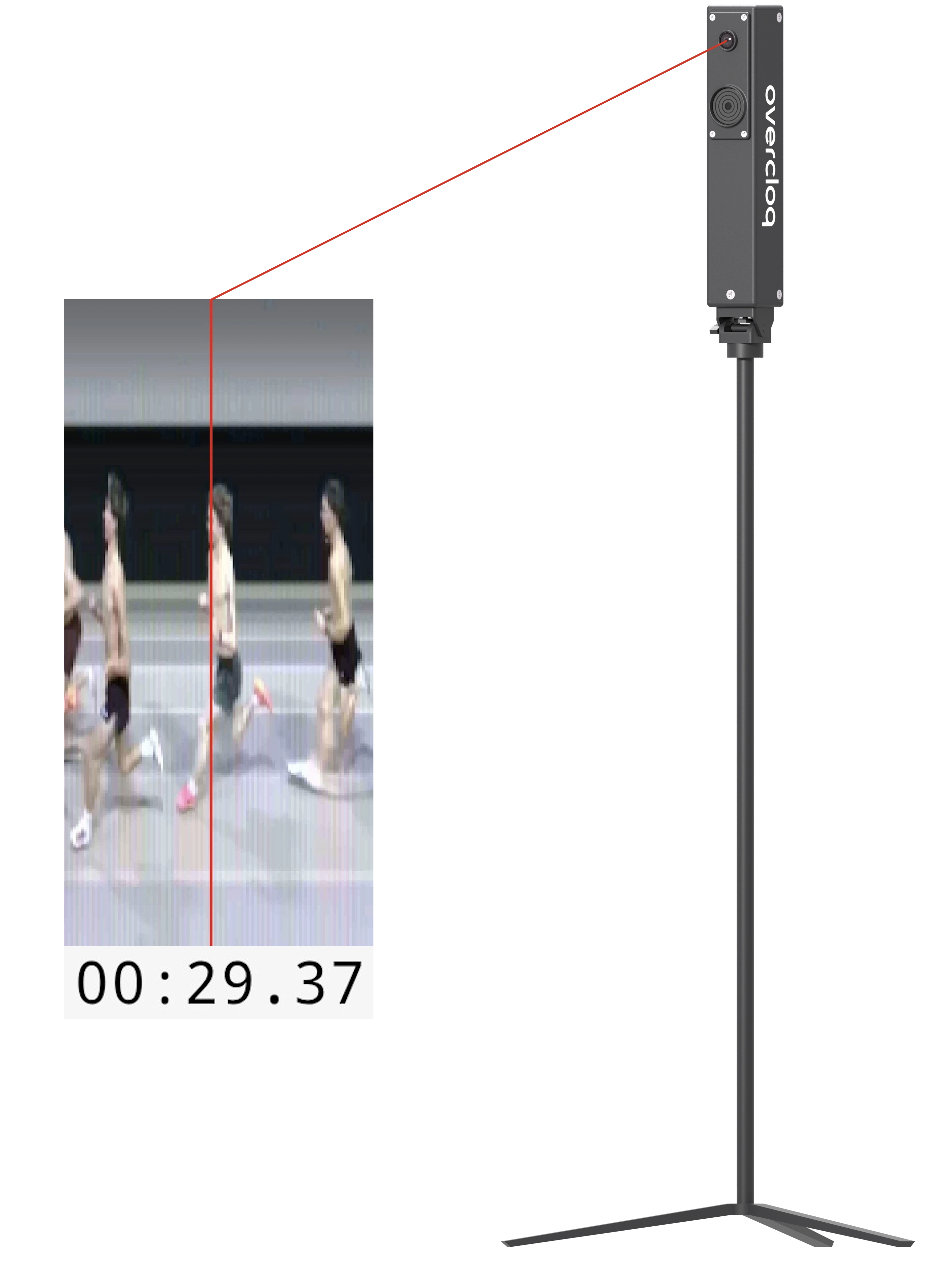

PF300R on its stand, with the sight line from its camera to a line-scan finish image

PF300R

Wireless photo finish
for practice

PF300R / Photo finish / Practice

Specs

A cost-effective wireless photo-finish system for practice. Multiple units provide split times and can be combined into a railcam-style replay.

  • 400-pixel line capture
  • Up to 300 lines/sec
  • Wireless data transfer
  • Automatic audible starts

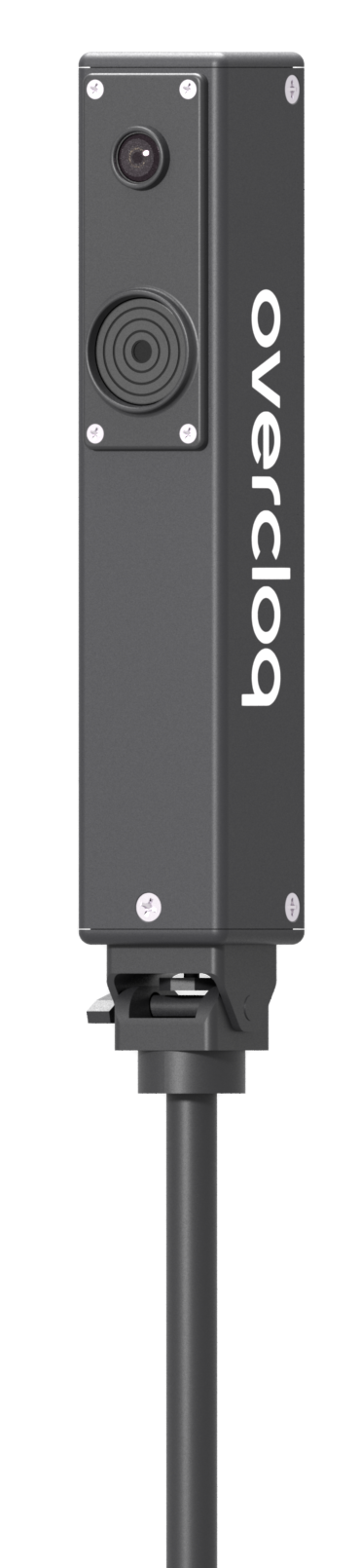

PF300R camera unit on its stand

PF300R / Photo finish / Practice

Pricing

$1,799PF300R system

PF300R / Railcam

Railcam replay

Place several PF300R units along the straight and combine their footage into one railcam-style replay of the race.

Placeholder copy

PF300R / Line-scan output

Line-scan output

PF300R captures 400-pixel lines at up to 300 lines per second.

Placeholder copy
PF300R line-scan image of several runners crossing the finish line

PF300R / Video

Post-race video

Review the race on video after the finish.

Placeholder copy
Post-race videoVideo placeholder

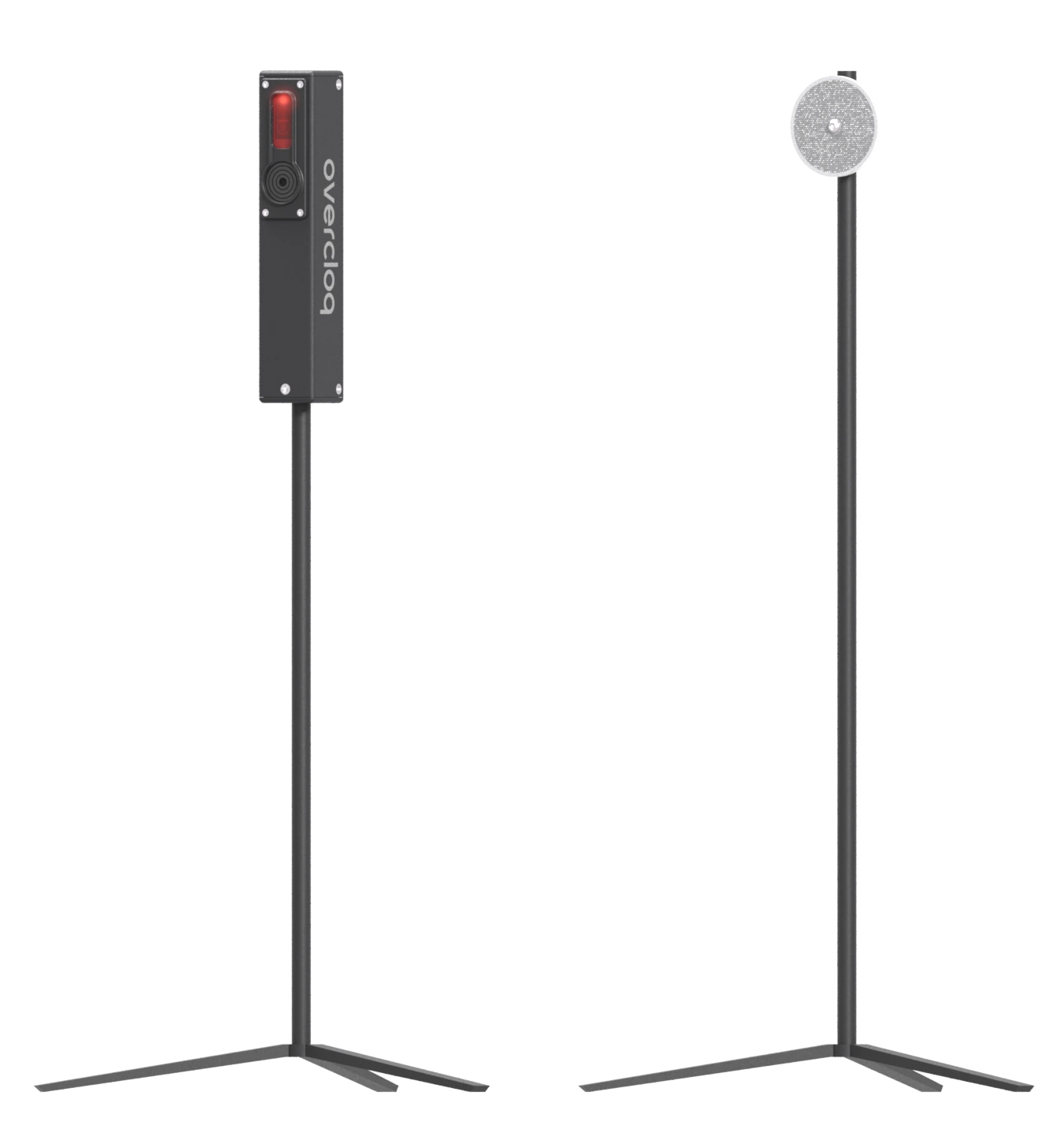

Beam Break sensor and reflector mounted on separate stands

Beam Break

Optical timing for starts,
splits and finishes

Beam Break / Optical timing

Specs

Beam Break measures starts, splits, finishes, reaction times, and sprint efforts by detecting interruptions of a light beam. Combine multiple units for split timing.

  • Reaction, split, and finish timing
  • Compact wireless system
  • Multiple units for split timing
  • Automatic audible starts

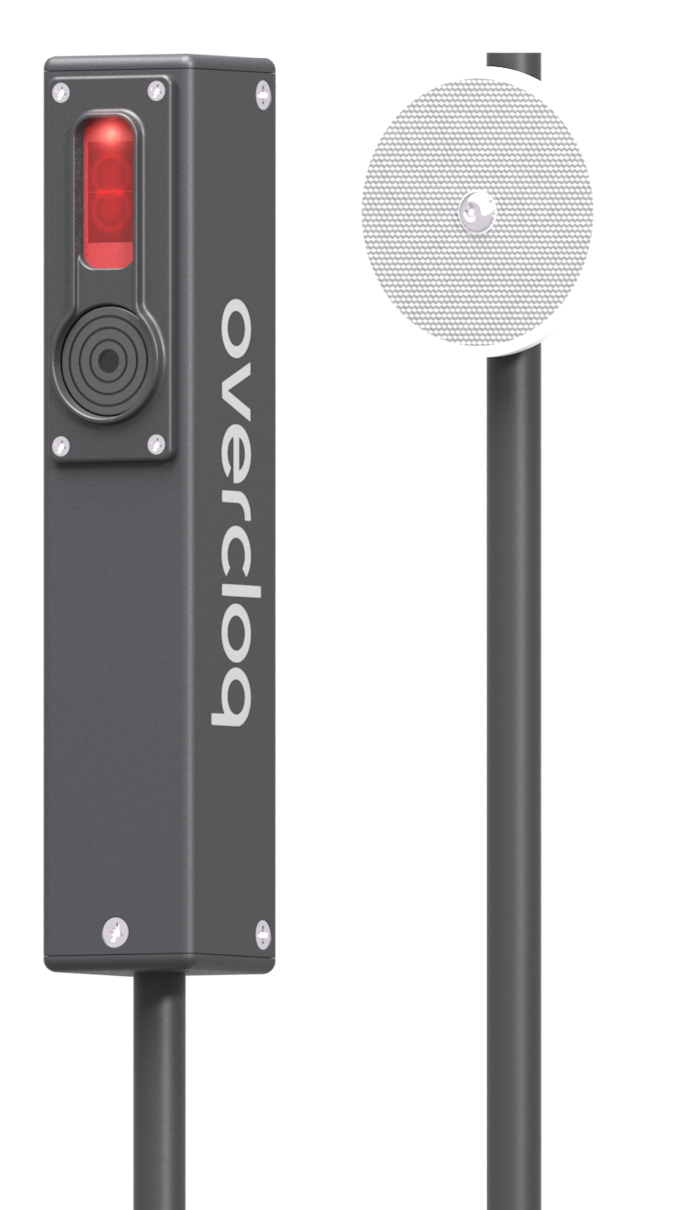

Beam Break sensor and reflector, close up

Beam Break / Optical timing

Pricing

$499Beam Break system

Beam Break / Timing modes

Timing modes

Reaction times, starts, splits, finishes and sprint efforts — all measured from interruptions of the beam.

Placeholder copy
Timing modesDiagram placeholder

Beam Break / Setup

Setup

A sensor and a reflector on separate stands, either side of the lane. Add more pairs for split timing.

Placeholder copy
Render of a runner passing between a Beam Break sensor and reflector on a track

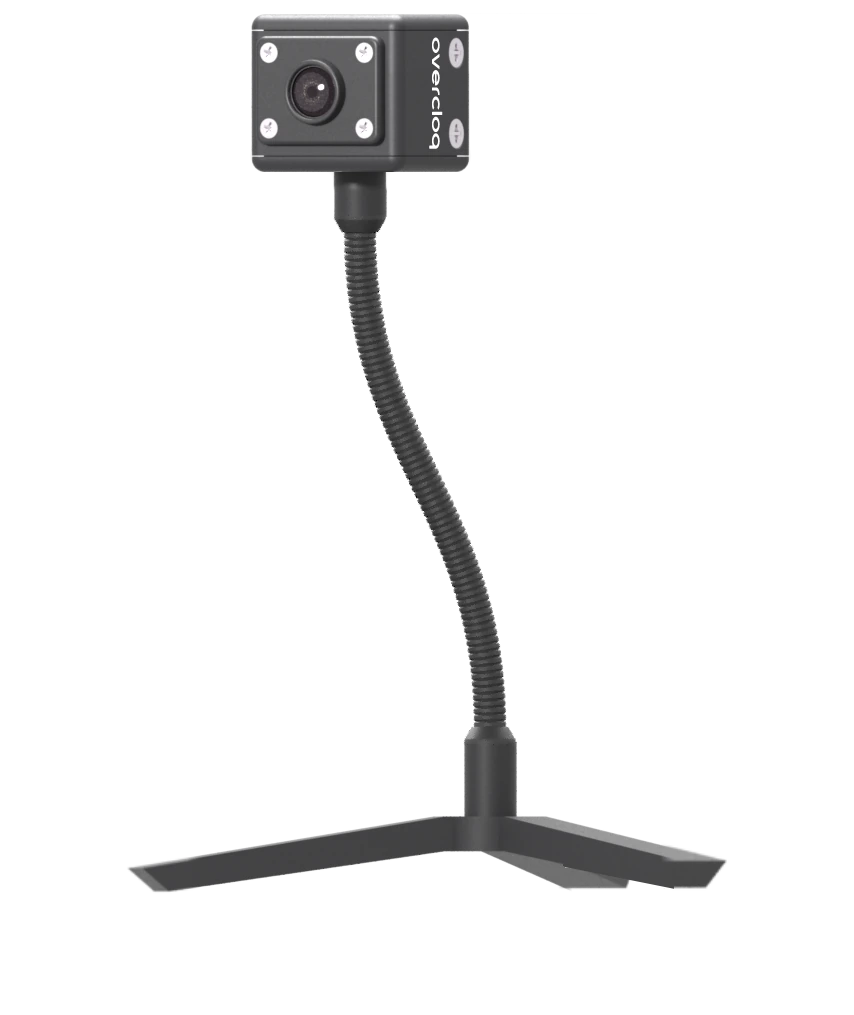

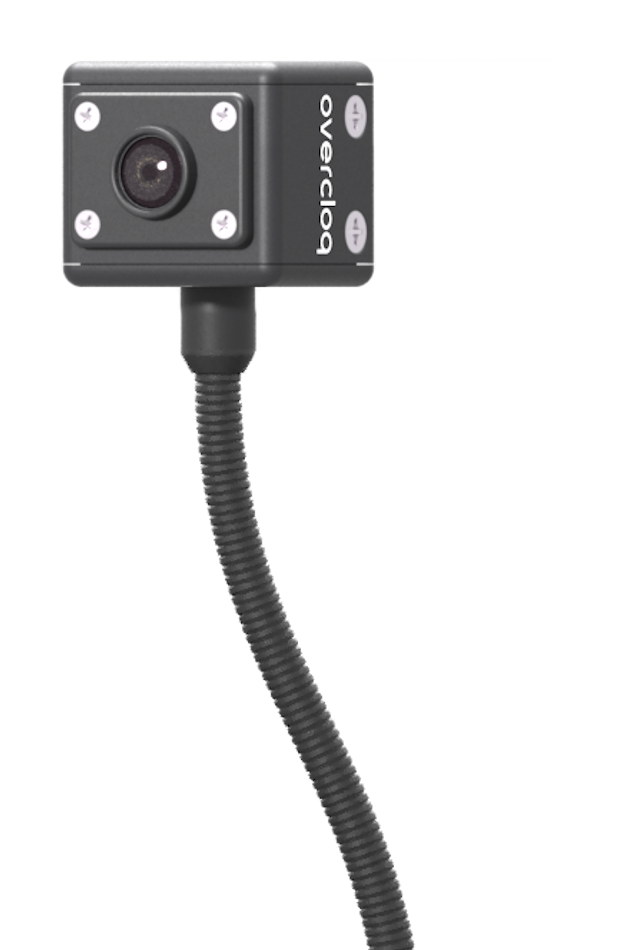

Frame Shift camera on a gooseneck mount

Frame Shift

High-speed video
for slow-motion playback

Frame Shift / High-speed video / Wireless

Specs

Frame Shift records high-speed video for slow-motion playback and transfers footage wirelessly. Multiple synchronized units can capture the same moment from different angles.

  • 212 × 80 at up to 1,600 fps
  • 640 × 360 at up to 450 fps
  • Wireless footage transfer
  • Synchronized multi-camera capture
Frame Shift camera head on its gooseneck, close up

Frame Shift / High-speed video / Wireless

Pricing

$499Frame Shift system

Frame Shift / Slow motion

Slow-motion playback

Record at 212 × 80 up to 1,600 fps, or 640 × 360 up to 450 fps, then transfer the footage wirelessly.

Placeholder copy

Frame Shift / Multi-camera

Multi-angle capture

Synchronized Frame Shift units capture the same moment from different angles.

Placeholder copy
Multi-angle captureVideo placeholder

B2B / OEM

For businesses

Interested in using Overcloq imaging or timing hardware in your own product or workflow? We can help adapt capture, wireless transport, and synchronization to your application.

Selected platform capabilities
Wireless transfer Wi-Fi and BLE, including the only HD BLE live video streaming service, supporting up to 720p at 30 fps.
Line-scan capture Up to 1920 × 1 at 2,500 lines/s and 820 × 1 at 4,660 lines/s.
High-speed video Up to 212 × 80 at 1,600 fps and 640 × 360 at 450 fps.
Device networking Synchronized devices and expandable multi-camera networks.

B2B / Integration

Integration

How an OEM or custom integration project works, from first conversation to delivery.

Placeholder copy
Integration processDiagram placeholder

B2B / Applications

Applications

Examples of imaging and timing applications built on Overcloq hardware.

Placeholder copy
ApplicationsImage placeholder

Contact

For questions about the products, OEM use, or timing and imaging applications, contact Overcloq.
