Fast capture. Precise timing.

View products B2B / OEM Contact

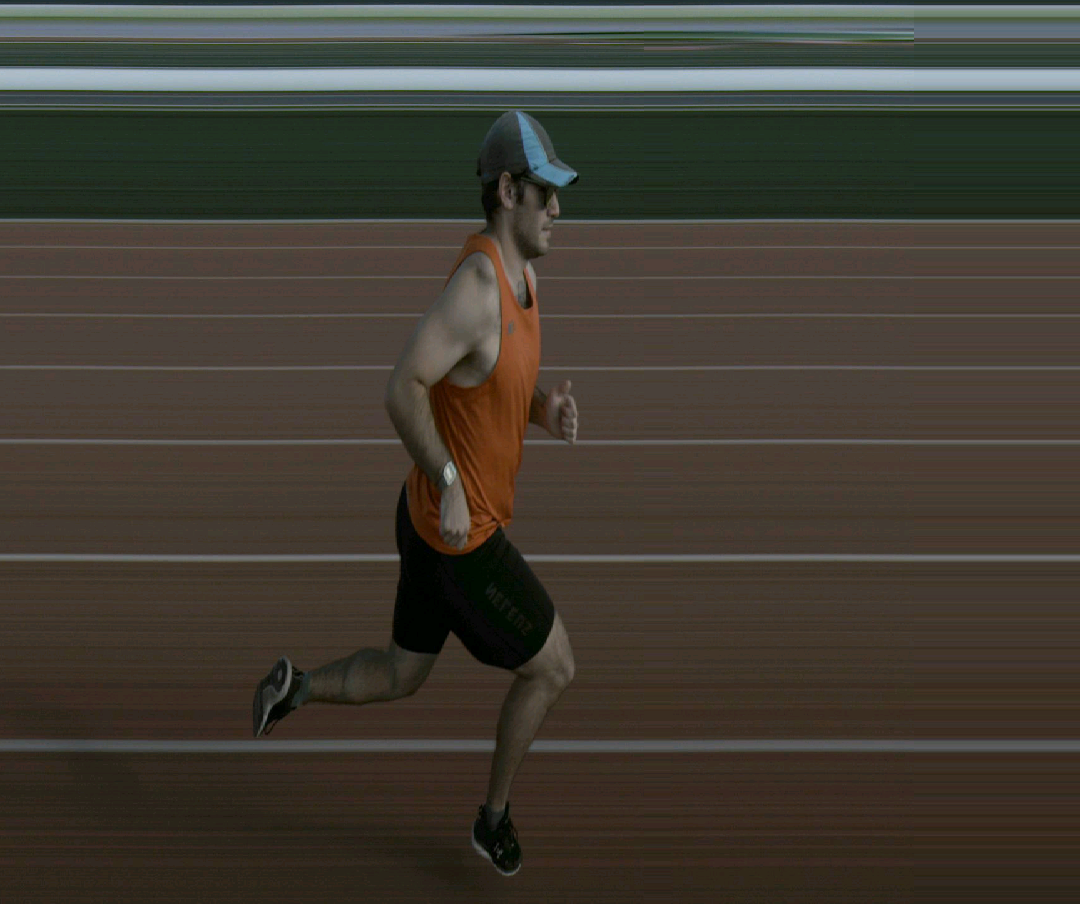

Photo-finish line-scan capture of a runner on an indoor track
PHOTO FINISH / LINE-SCAN OUTPUT
LINE-SCAN IMAGINGPhoto Finish HIGH-SPEED VIDEOFrame Shift OPTICAL TIMINGBeam Break

01 / LINE-SCAN IMAGING

Photo Finish

Photo-finish imaging and timing

Photo-finish timing records a narrow view of the finish line repeatedly. Placing those slices side by side creates an image with time along one axis, making close finishes easier to measure.

PHOTO FINISH / COMPETITION

PF2500

Our flagship timing system

Captures 1,920-pixel lines at up to 2,500 lines per second and transmits all data wirelessly. Use multiple units for split times. Includes an automatic buzzer for audible starts.

Pricing
Starting at $1,999Per season (3 months)
$4,999Per year

Includes access to our meet-management and results website.

Bulk order discounts available. Prices subject to change.

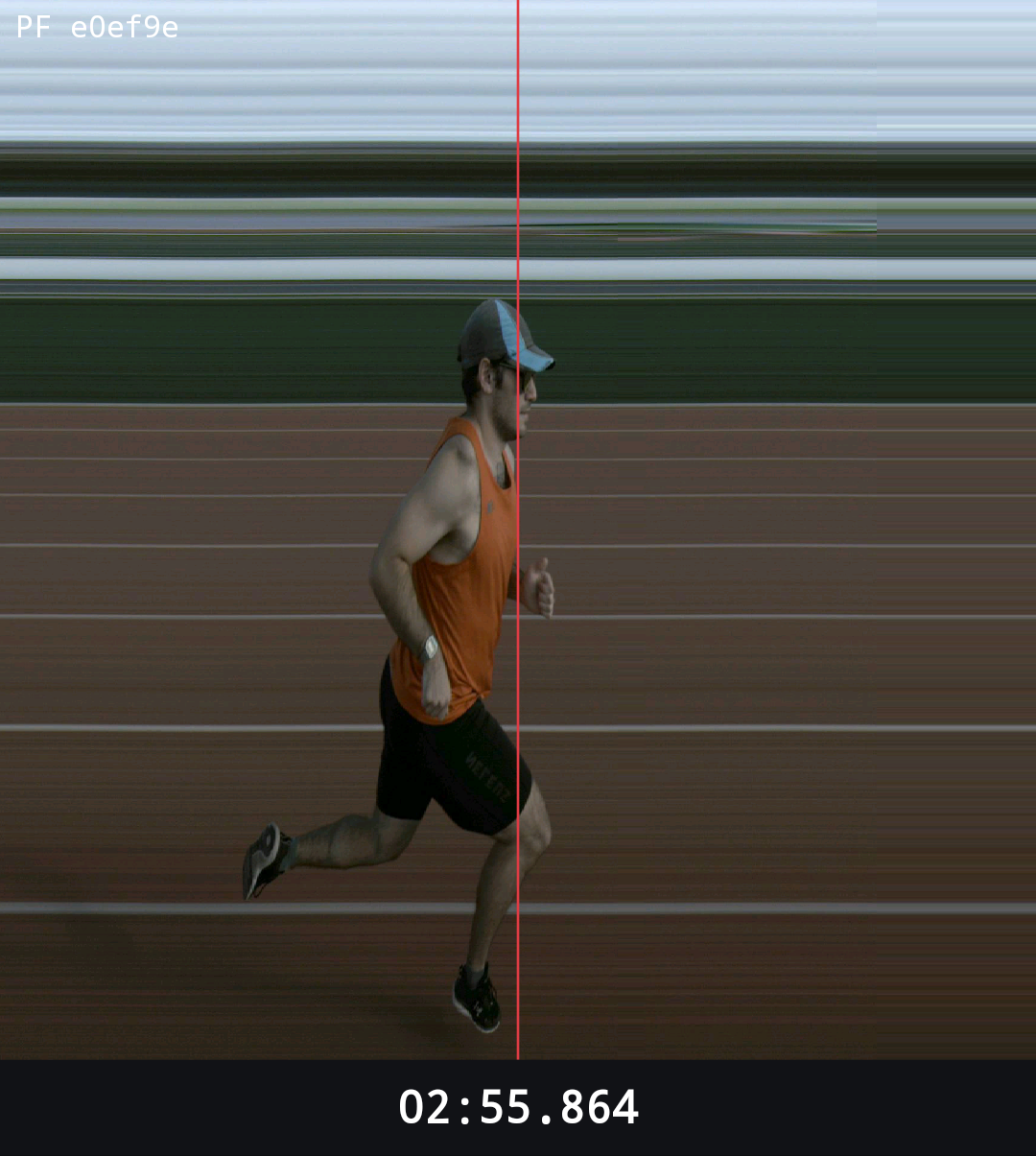

PF2500 line-scan photo-finish image of a runner crossing the line with a red timing cursor
PF2500 / 01Line-scan output

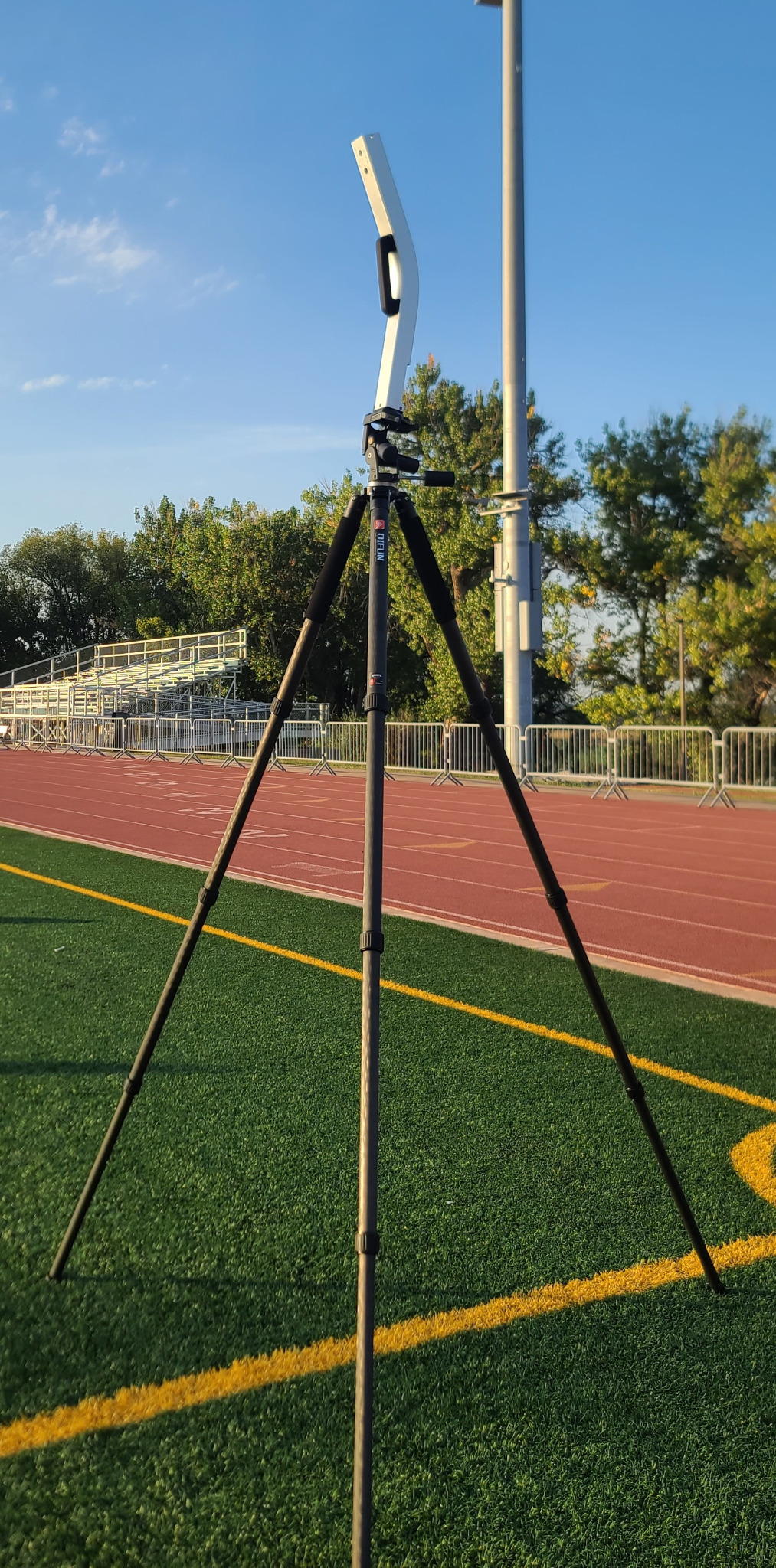

PF2500 system mounted on a tripod next to a running track
PF2500 / 02Track setup

PHOTO FINISH / PRACTICE

PF300R

A cost-effective photo-finish alternative

Captures 400-pixel lines at up to 300 lines per second and transmits all data wirelessly. Includes an automatic buzzer for audible starts.

Multiple units provide split times and post-race video that can be combined into a railcam-style replay.

Pricing
$1,799PF300R system

Bulk order discounts available. Prices subject to change.

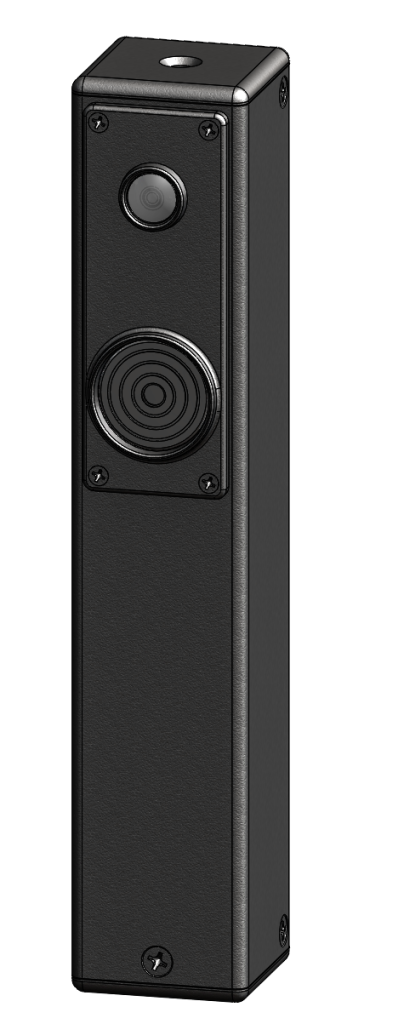

PF300R hardware unit render
PF300R / 01Hardware
PF300R / 02Rail-cam emulation

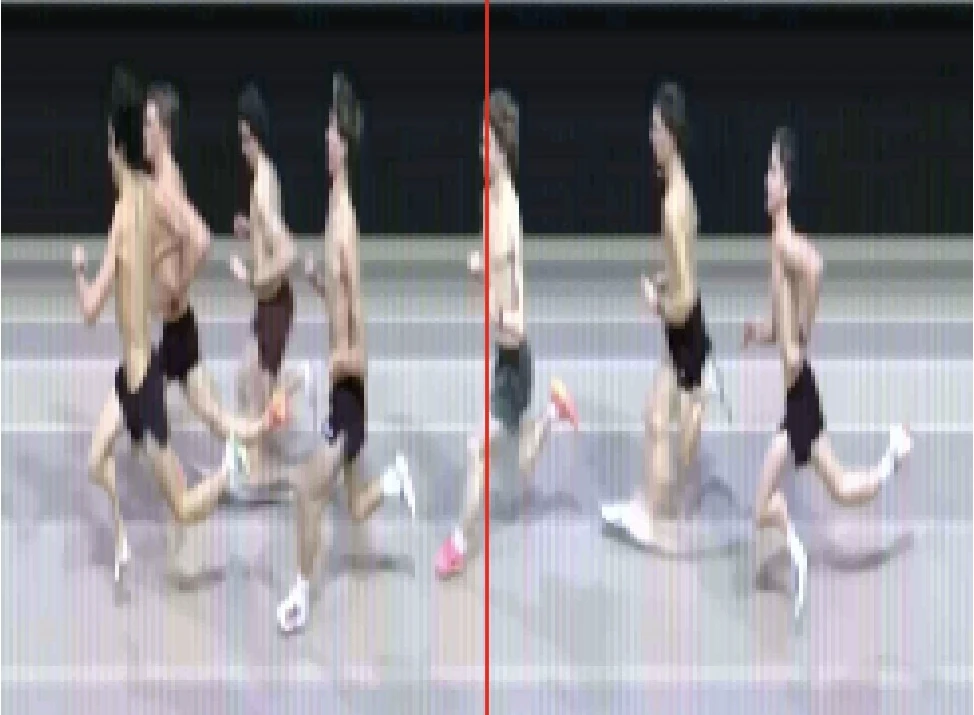

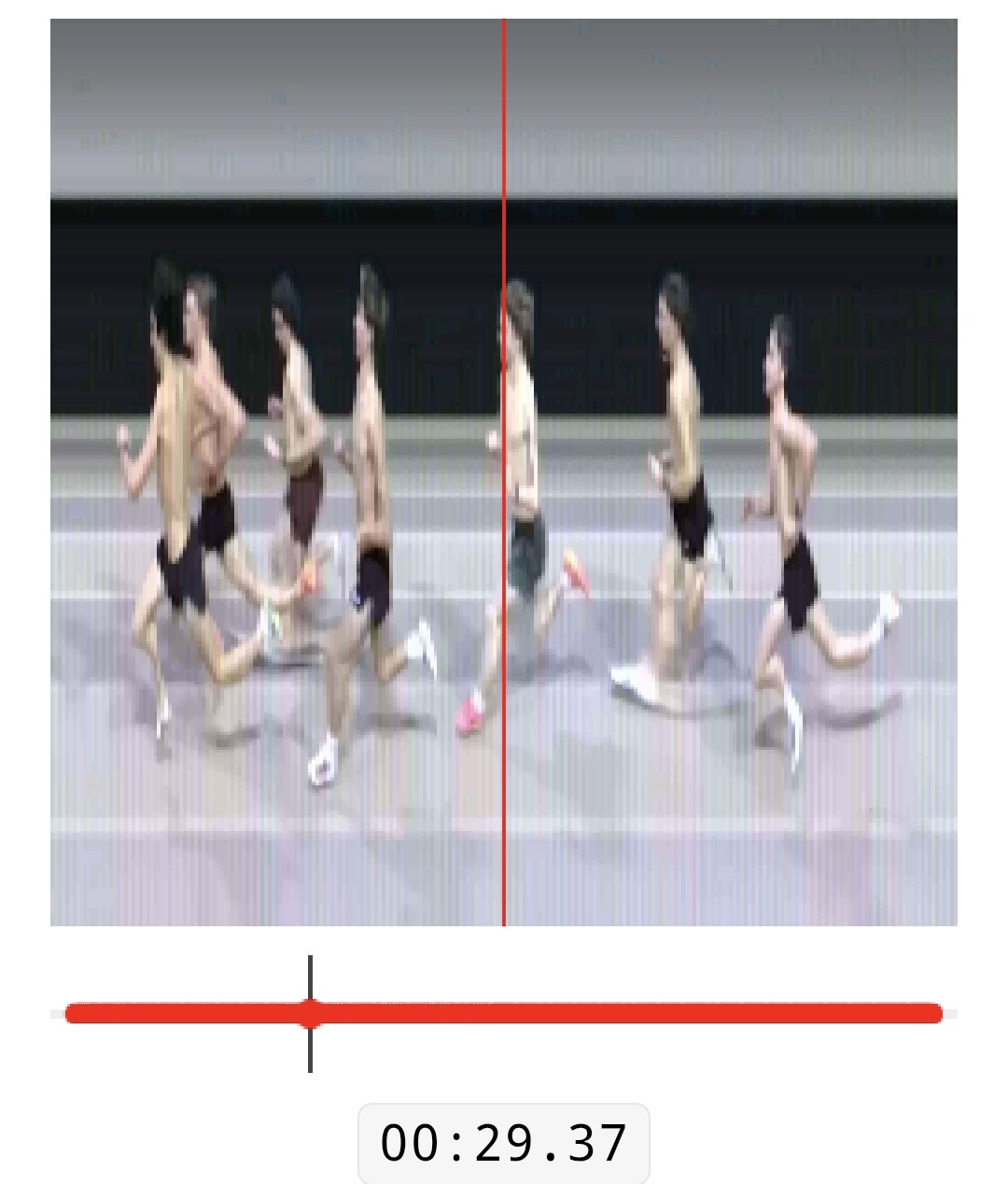

PF300R photo-finish line-scan image showing six runners and a red timing cursor
PF300R / 03Line-scan outputView full screenshot ↗

02 / HIGH-SPEED VIDEO

Frame Shift

High-speed video capture and playback

Frame Shift records high-speed video for slow-motion playback and transfers footage wirelessly.

Capture modes include 212 × 80 at up to 1,600 fps and 640 × 360 at up to 450 fps. Use multiple synchronized units for different camera angles.

Pricing
$499Frame Shift

Bulk order discounts available. Prices subject to change.

FS / 01 — Slow-motion example
FS / 02 — Slow-motion example

03 / OPTICAL TIMING

Beam Break

Optical timing for starts, splits, and finishes

Beam Break measures reaction times, 40-yard dashes, starts, splits, and finishes by detecting interruptions of a light beam.

Combine multiple units for split timing. Includes an automatic buzzer for audible starts.

Pricing
$499Beam Break

Bulk order discounts available. Prices subject to change.

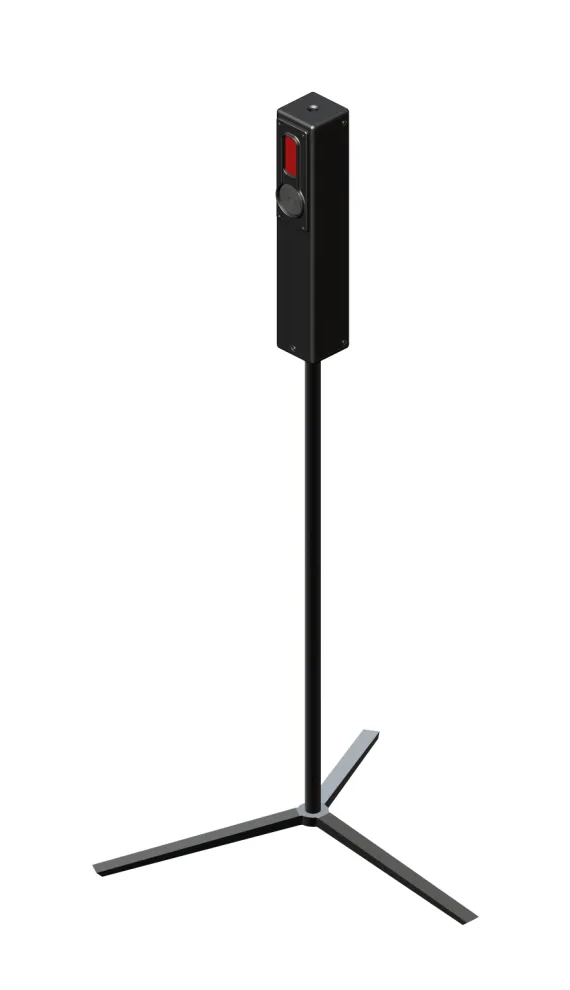

Beam Break optical timing sensor mounted on a three-legged floor stand
BB / 01 Beam Break hardware
Render of two Beam Break timing sensors alongside an outdoor track as a runner passes between them
BB / 02 Track setup example

B2B / OEM

For businesses

Interested in using Overcloq imaging or timing hardware in your own product or workflow? We can help adapt capture, wireless transport, and synchronization to your application.

Selected platform capabilities
Wireless transfer Wi-Fi and BLE, including the only HD BLE live video streaming service, supporting up to 720p at 30 fps.
Line-scan capture Up to 1920 × 1 at 2,500 lines/s and 820 × 1 at 4,660 lines/s.
High-speed video Up to 212 × 80 at 1,600 fps and 640 × 360 at 450 fps.
Device networking Synchronized devices and expandable multi-camera networks.

Contact

For questions about the products, OEM use, or timing and imaging applications, contact Overcloq.
